DESCRIPTION
Precision-engineered for audiophile rooms, mastering suites, and professional studios, the CantonBass is a tunable low-frequency absorber developed to meet these requirements, offering exceptional performance in the absorption and tuning of low frequencies. Unlike traditional wall-mounted systems, the CantonBass requires no installation; simply place it on the floor, in a vertical or horizontal position, and find its optimal location within the room. Each unit contains two dual, carefully engineered resonant boxes equipped with two custom membranes manufactured in-house to guarantee consistent performance across the adjustable frequency range. One box tuned to the fundamental frequency and the other to its harmonic, allowing for fine control and correction of acoustic anomalies in rooms where low-frequency sound accuracy is critical. This innovative solution was successfully applied to fine-tuning the mixing room of Jesse Joschua’s studio, achieving outstanding acoustic results and setting a new benchmark in low-frequency management. We supply these panels tuned to 32Hz, 40Hz, 50Hz, and 80Hz, and at their fundamental harmonic frequencies above, in the standard sizes of 120×60×30 cm and 60×60×30 cm, with other customized sizes available upon request.
FEATURES
Recycled materials
Uses 60% of recycled materials
Tuned to
Tuned to 32Hz 40Hz, 50Hz & 80Hz
LF average absorption
0.95/m2 [>32Hz; <160Hz]
Fire-resistance
Euroclass B-s1,d0 (similar to old M1)
Recyclable
100% recyclable
Installation
Accessories included
AVAILABLE FINISHINGS
Regular fabric:
Similar to RAL 1011
Beige
Similar to RAL 9005
Black
Similar to RAL 5013
Blue
Similar to RAL 8019
Brown
Similar to RAL 6028
Green
Similar to RAL 7015
Grey
Similar to RAL 5010
Light blue
Similar to RAL 7001
Light grey
Similar to RAL 2001
Orange
Similar to RAL 4007
Purple
Similar to RAL 3003
Red
Similar to RAL 9003
White
Similar to RAL 1003
Yellow
Motif finishing:
Motif

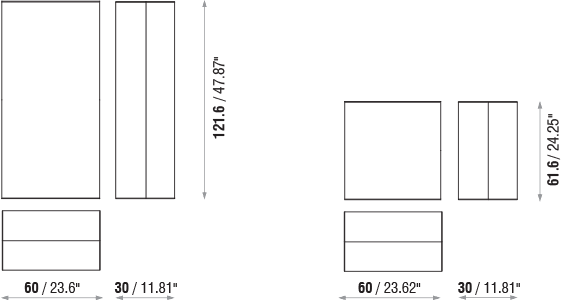

TECHNICAL DRAWINGS
PRODUCT DIMENSIONS
| Model | Height | Width | Depth | Weight | |
|---|---|---|---|---|---|
|
|
CNT060 | 61,6 cm (24,87") | 60 cm (23,6") | 30 cm (11,81") | 16 kg (35.27 in) |
|
|
CNT120 | 121,6 cm (47,87") | 60 cm (23,6") | 30 cm (11,81") | 32 kg (70.54 in) |

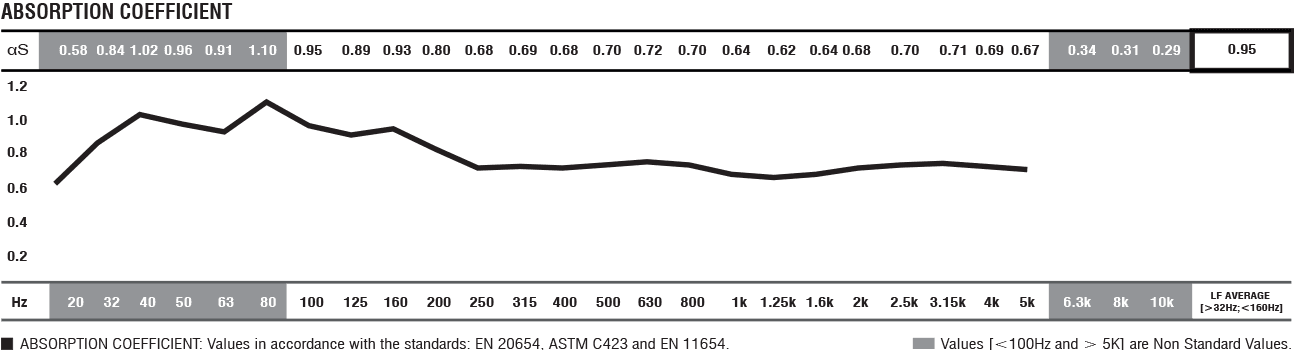

ABSORPTION COEFFICIENT
PRODUCT DATA
