DESCRIPTION
The CONVEXABSORBER is an absorbent panel which is efficient at absorbing low and medium frequencies. It was designed to be installed on ceilings and walls.
It is manufactured by combining two techniques: a box tuned to 200 Hz, which is efficient at low and mid-low frequencies, and a mathematically studied absorbent labyrinth, which provides this product with an excellent performance in absorbing sound.

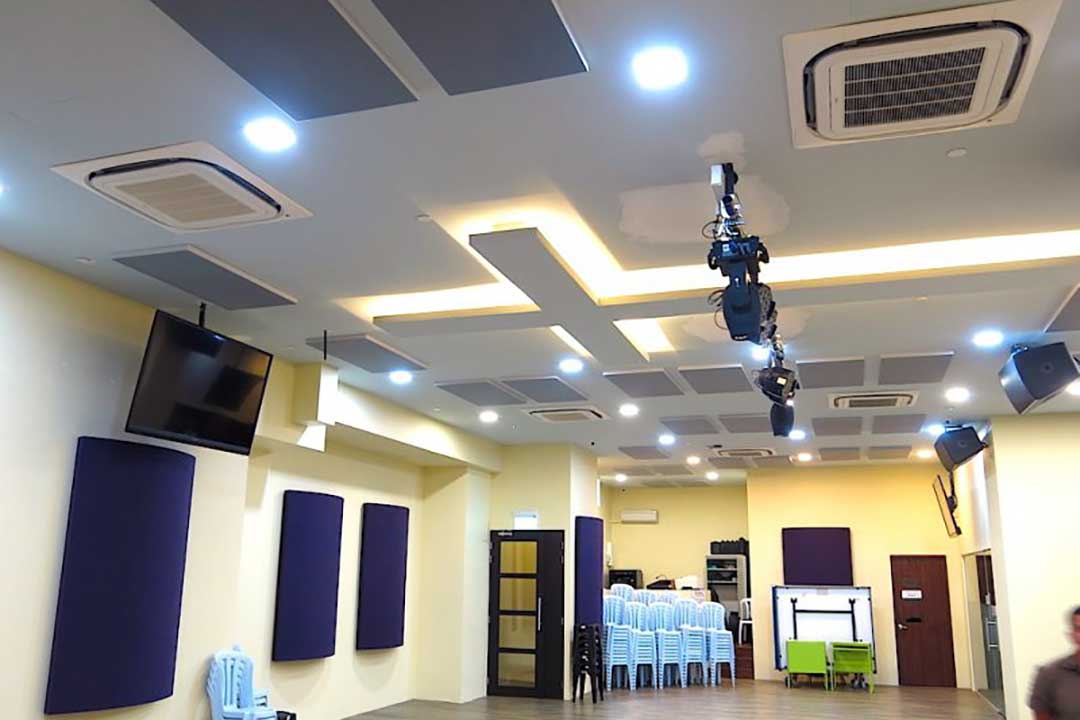

Given its characteristics, this panel balances reverberation times and echoes in large-sized rooms, auditoriums, etc.
Because of its large and convex shape, it also is a diffuser with a large dispersion surface.
When the areas so require, these panels can be installed alternately at 90º angles, the dispersion thus being on two plans.
The CONVEXABSORBER panel was designed and tested in order to guarantee its high performance in controlling sound energy, by reducing resonances and reflections. It has a wide range of applications.
FEATURES
AVAILABLE FINISHINGS
Regular fabric:
Motif finishing:
TECHNICAL DRAWINGS
PRODUCT DIMENSIONS
Model | Height | Width | Depth | Weight | |
---|---|---|---|---|---|
|
CON120 | 120 cm (47,2") | 114 cm (44,9") | 26 cm (10,2") | 23.4 kg (51 lbs 9 oz) |
|
CON180 | 180 cm (70,9") | 114 cm (44,9") | 26 cm (10,2") | 35.1 kg (77 lbs 6 oz) |
ABSORPTION COEFFICIENT
USED BY
PRODUCT DATA
Get in
touch
Text to us and tell us all your wishes
as your closest friend.
IMPORTANT NOTICE
IMPORTANT NOTICE
JOCAVI™ products are fire retardant and/or self extinguishing to varying extents. Before purchasing any of our acoustic foam products, please check with your local fire marshal or building inspector for approval. We cannot guarantee that any product meets the specific building code regulations in your area/country as regulations widely vary from place to place. JOCAVI™ will not be held liable for property damage or injuries caused by the misuse of our products.
Given the fragility and sensitivity of the raw materials used in the ATP™ product range, we advise and recommend these products are not installed within reach of physical contact by people or objects. Physical contact may damage these products.
Sizes may slightly vary due to their production method and some inherent raw-materials characteristics. Despite all the standard sizes of all products, some models can be customised upon previous consultation. Sizes may slighty vary due to their production method and some inherent raw-materials characteristics.
