DESCRIPTION
JOCAVI™ has developed this acoustic diffusion panel by using non-linear convex shapes, based on a set of three ellipses which were later altered and optimised in order to achieve an oval shape with better angular diffusion coverage.
The external raw material of this panel was selected out of some materials that have the fastest and most specific properties required for a diffuser with these characteristics. However, the HIPS still has some advantages, namely UV protection, impact resistance and fire resistance similar to old M2.

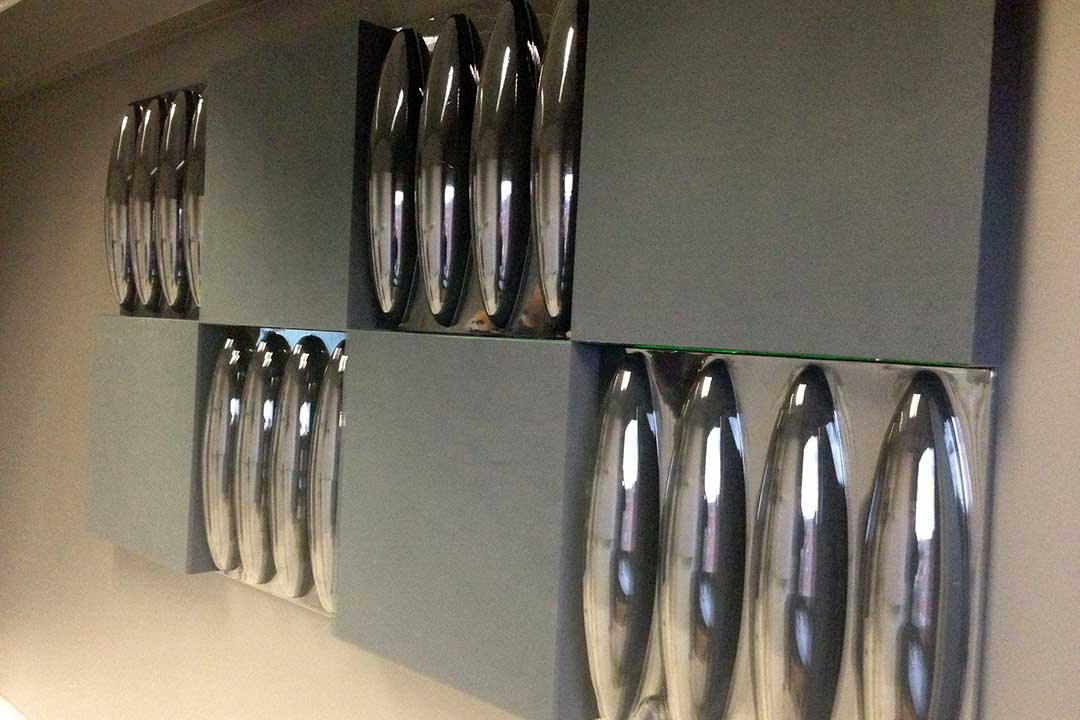

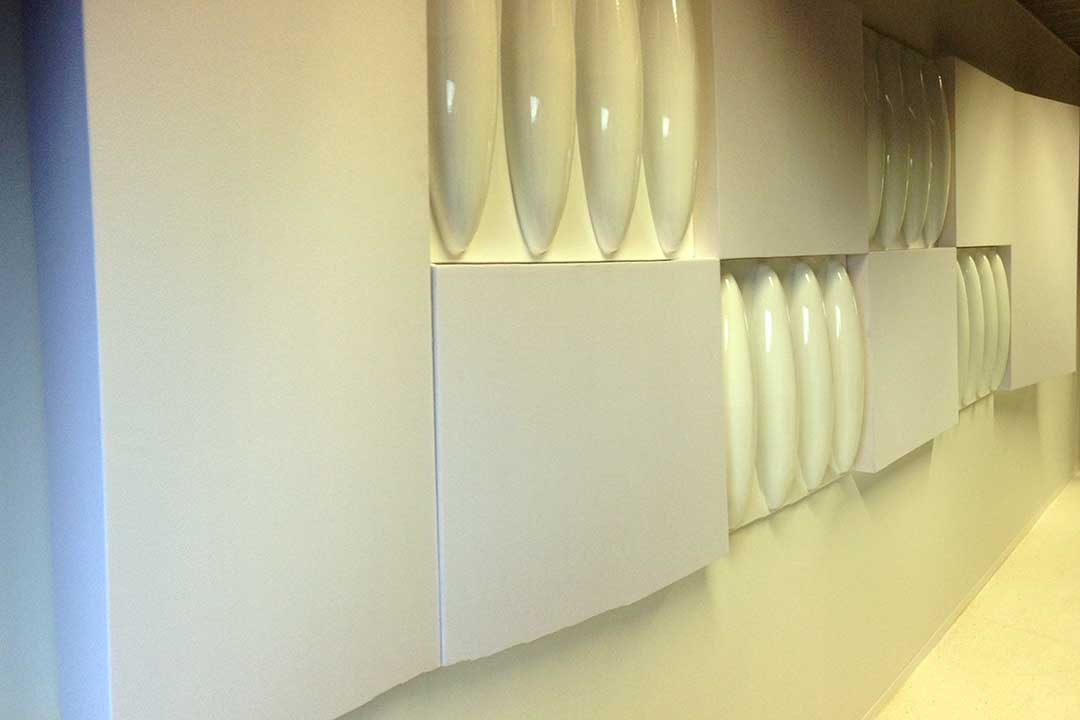

The DYNAMICFLOW’s interior is composed of a substance made of impregnated mineral fibres and textiles, which gives this product a specific mass and also contributes to its consistence. The back part consists of an even surface. Its shape adjusts to even surfaces. It can be used on "T" profile false ceilings or on walls, by using our glues or fastening materials.
FEATURES
AVAILABLE FINISHINGS
HIPS Colours
![Black](https://jocavi.net/strapi/uploads/hips_black_6a48e089e5.png)
![Blue](https://jocavi.net/strapi/uploads/hips_blue_8c90c8c7c7.png)
![Brown](https://jocavi.net/strapi/uploads/hips_brown_a74430a29f.png)
![Cream](https://jocavi.net/strapi/uploads/hips_cream_f0f54df0ac.png)
![Green](https://jocavi.net/strapi/uploads/hips_green_f2803f38dd.png)
![Light grey](https://jocavi.net/strapi/uploads/hips_light_grey_e45552e86b.png)
![Lilac](https://jocavi.net/strapi/uploads/hips_lilac_2e32fc6fc9.png)
![Orange](https://jocavi.net/strapi/uploads/hips_orange_e5b067128a.png)
![Purple](https://jocavi.net/strapi/uploads/hips_purple_6f9128ec64.png)
![Red](https://jocavi.net/strapi/uploads/hips_red_abc4c982ac.png)
![White](https://jocavi.net/strapi/uploads/hips_white_b28508c224.png)
![Yellow](https://jocavi.net/strapi/uploads/hips_yellow_5a15e59dae.png)
TECHNICAL DRAWINGS
![](https://jocavi.net/strapi/uploads/dynamicflow_technicaldrawings_ca66f94188.png)
PRODUCT DIMENSIONS
Model | Height | Width | Depth | Weight | |
---|---|---|---|---|---|
|
DYN060 | 60 cm (23,6") | 60 cm (23,6") | 9 cm (3,5") | 4.3 kg (9 lbs 8 oz) |
ABSORPTION COEFFICIENT
![](https://jocavi.net/strapi/uploads/dynamicflow_chart_5e5aa4510f.png)
RELATED VIDEOS
USED BY
PRODUCT DATA
Get in
touch
Text to us and tell us all your wishes
as your closest friend.
IMPORTANT NOTICE
IMPORTANT NOTICE
JOCAVI™ products are fire retardant and/or self extinguishing to varying extents. Before purchasing any of our acoustic foam products, please check with your local fire marshal or building inspector for approval. We cannot guarantee that any product meets the specific building code regulations in your area/country as regulations widely vary from place to place. JOCAVI™ will not be held liable for property damage or injuries caused by the misuse of our products.
Given the fragility and sensitivity of the raw materials used in the ATP™ product range, we advise and recommend these products are not installed within reach of physical contact by people or objects. Physical contact may damage these products.
Sizes may slightly vary due to their production method and some inherent raw-materials characteristics. Despite all the standard sizes of all products, some models can be customised upon previous consultation. Sizes may slighty vary due to their production method and some inherent raw-materials characteristics.
